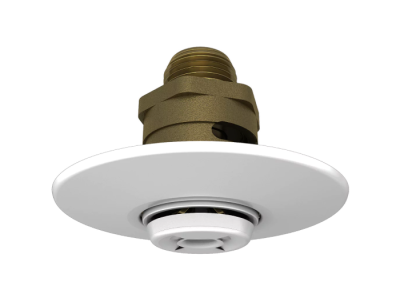

VK478
Product Variants
- SAP number 19995MC/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 19995MC/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 19995ME/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 19995ME/RAL9010
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Pure white RAL9010
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 19995ME/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19995MC/B | Standard Coverage |
Threaded |
NPT |
Black |
80 |
5.6 |
Brass |
12 |
Pendent |
Standard |
1/2″ |
1/2″ |
74 |
| 19995MC/W | Standard Coverage |
Threaded |
NPT |
White |
80 |
5.6 |
Brass |
12 |
Pendent |
Standard |
1/2″ |
1/2″ |
74 |
| 19995ME/B | Standard Coverage |
Threaded |
NPT |
Black |
80 |
5.6 |
Brass |
12 |
Pendent |
Standard |
1/2″ |
1/2″ |
96 |
| 19995ME/RAL9010 | Standard Coverage |
Threaded |
NPT |
Pure white RAL9010 |
80 |
5.6 |
Brass |
12 |
Pendent |
Standard |
1/2″ |
1/2″ |
96 |
| 19995ME/W | Standard Coverage |
Threaded |
NPT |
White |
80 |
5.6 |
Brass |
12 |
Pendent |
Standard |
1/2″ |
1/2″ |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
