Electrical Cabinet Fire Suppression Systems are compact fire safety solutions designed to provide early intervention against fires that may occur inside electrical panels, MCC panels, power factor correction panels, UPS cabinets, control panels, and similar enclosed electrical equipment. Short circuits, overheating, loose connections, or equipment failures inside electrical panels can cause a small fire to develop rapidly. Therefore, systems that provide automatic and direct fire suppression form an important layer of protection, particularly in facilities containing critical equipment.
While conventional fire suppression systems generally need to protect the entire area, cabinet-mounted systems provide direct intervention inside the enclosure where the fire risk is located. This approach aims to control the fire before it spreads beyond the electrical cabinet and reaches surrounding equipment. When selecting a system, factors such as cabinet volume, equipment layout, fire risk, extinguishing agent, and application conditions should be evaluated together.

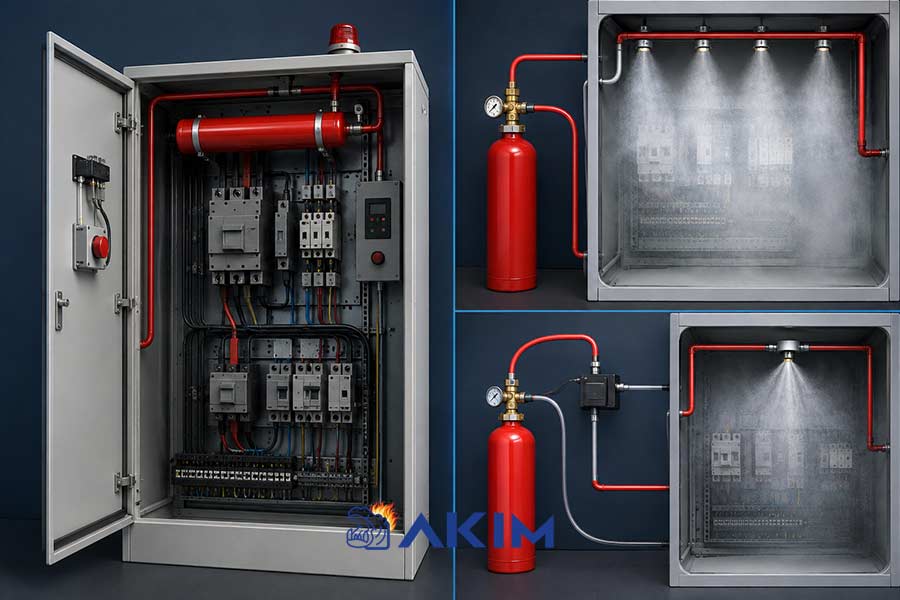

Operating Principles (Direct and Indirect)
Operating Principles (Direct and Indirect) refer to the two basic application methods used for electrical cabinet fire suppression systems. In both methods, the objective is to detect the fire as early as possible and deliver the extinguishing agent to the fire source in a controlled manner. Depending on the cabinet structure, the equipment to be protected, and the system design, either direct or indirect application may be preferred.
Direct Operation System
Direct Operation System is based on placing a special heat-sensitive detection tube in high-risk areas inside the electrical cabinet. When a fire or high temperature occurs at a specific point along the detection tube, the tube ruptures and the extinguishing agent is discharged directly into the area where the fire has originated.
With this method, mechanical detection and discharge can be carried out without the need for a separate detection panel. It may be considered for small- and medium-sized electrical cabinets, particularly in applications where direct intervention at the fire source is important.
Indirect Operation System
Indirect Operation System uses an operating arrangement in which fire detection and extinguishing discharge are separated from each other. When the heat-sensitive tube detects a fire, the system valve is activated and the extinguishing agent is distributed throughout the cabinet through nozzles.
This configuration can provide advantages in applications where the extinguishing agent needs to be distributed to multiple points or where a more controlled discharge design is required inside the cabinet. Depending on the requirements, integration with alarm contacts, power shutdown systems, or other safety equipment can also be considered.
Extinguishing Agents Used
Extinguishing Agents Used are selected according to the characteristics of the equipment to be protected, cabinet volume, and applicable design criteria. In areas containing electronic equipment, it is important to prefer extinguishing agents that leave no residue or cause minimal damage to the equipment.
HFC-227ea (FM-200)
HFC-227ea (FM-200) is a clean agent used for the protection of electrical and electronic equipment. One of its key advantages is that it does not leave solid or liquid residues requiring post-discharge cleaning on equipment when responding to a fire inside the cabinet.
In systems using FM-200, the required agent quantity should be determined based on the cabinet volume and applicable design criteria. Cylinder capacity or agent weight should not be considered merely as a general product selection; an engineering calculation should be performed based on the actual protected volume.
HFC-236ea / HFC-125 are among the halocarbon-based agents used in certain automatic and compact fire suppression applications. When selecting an extinguishing agent, not only suppression performance but also equipment compatibility, environmental conditions, applicable regulations, manufacturer technical data, and system design criteria should be evaluated together.
Particularly for products intended for use inside electrical cabinets, reviewing the technical documentation is important to ensure that the system is installed with the correct amount of extinguishing agent and an appropriate detection arrangement.
Aerosol Generators
Aerosol Generators are compact solutions that suppress fires by releasing a solid-particle extinguishing agent into the protected enclosure in a controlled manner. They can be considered for small electrical cabinets, enclosures, and certain enclosed spaces.
For aerosol systems, the sensitivity of the equipment inside the cabinet, post-discharge environmental conditions, and the application limits specified by the manufacturer should also be taken into consideration. The same aerosol generator should not be assumed to be suitable for every electrical cabinet.

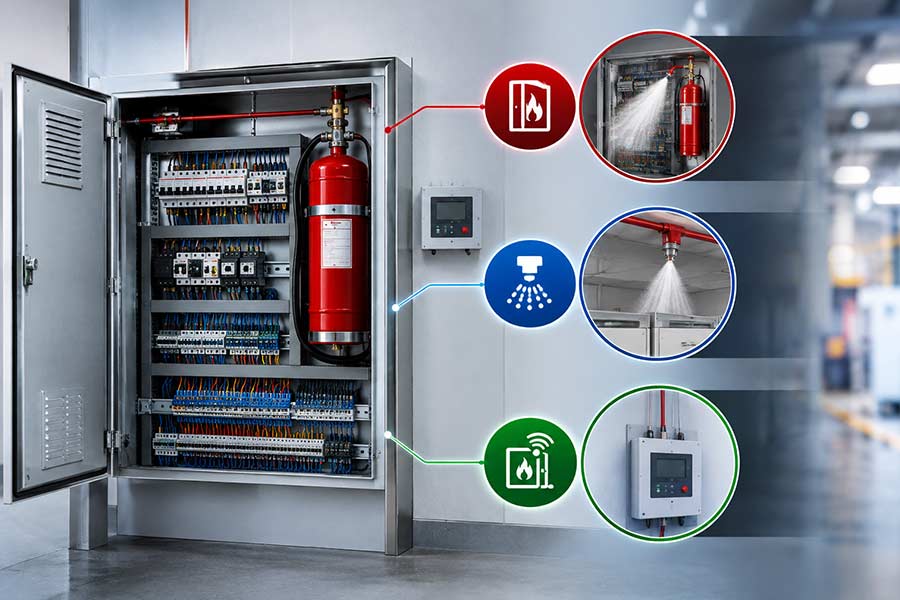

Applications and Types

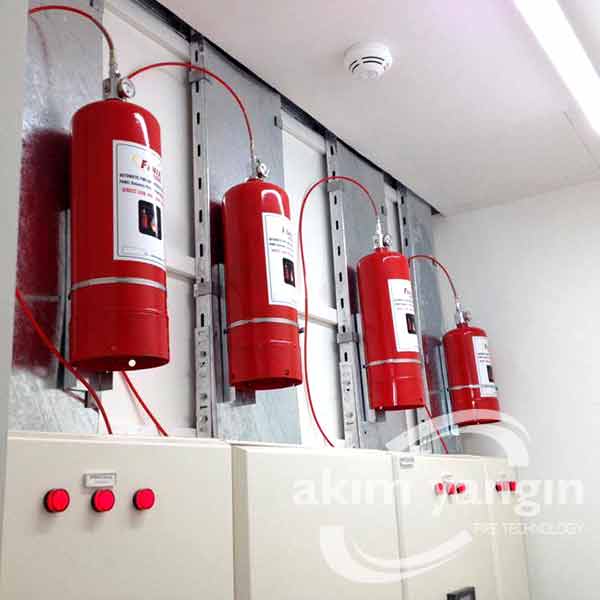

Applications and Types demonstrate the wide range of applications for electrical cabinet fire suppression systems. In addition to electrical panels, these solutions can be considered for MCC panels, power factor correction panels, automation panels, UPS systems, control cabinets, generator control panels, and various industrial machine enclosures.
Particularly in factories where production downtime can result in significant costs, as well as in power distribution centers, data processing infrastructure, and critical automation systems, the risk of fire inside electrical cabinets should be assessed separately.
It is important to note that electrical cabinet fire suppression does not replace the overall fire safety system of a building. The system should be considered as a complementary component of an appropriate fire detection and suppression strategy. The facility's overall fire scenario, power shutdown system, alarm infrastructure, and other safety equipment may also be evaluated as part of the project.
Compact design, electrical cabinet applications, automatic detection and suppression
Quote on request
2 kg HFC / FM-200 Gas Fire Suppression Kit
Suitable for small electrical cabinets, rapid fire suppression, suitable for electronic equipment
Quote on request
4–6 kg HFC Gas Fire Suppression Kit
Suitable for medium-sized electrical cabinets, high suppression capacity, automatic activation
Quote on request
12 kg Automatic Gas Fire Suppression System
For large electrical cabinets and electrical rooms, wide protection area, automatic fire suppression
Quote on request
System Types and Approximate Costs
System Types and Approximate Costs vary depending on the cabinet volume, extinguishing agent, cylinder capacity, detection tube length, nozzles, installation method, and commissioning scope. Therefore, it would not be appropriate to determine the price simply by asking, “How much does an electrical cabinet fire suppression system cost?”
In the market, basic automatic cabinet fire suppression systems consisting of equipment for small enclosures may start from a few thousand Turkish lira, while applications involving higher-capacity gas cylinders, special valves, multiple nozzles, alarm integration, and professional installation can have significantly higher costs. Current market examples indicate that the product-only prices of some 2–6 kg FM-200 cabinet fire suppression products can range from several thousand Turkish lira to higher levels. For a complete system, services such as site assessment, engineering, installation, connections, testing, and commissioning may also be included separately in the total cost.
Therefore, when comparing prices, it is important to ask not only how many kilograms of extinguishing agent the product contains, but also which extinguishing agent is used, whether the system operates directly or indirectly, what detection and discharge equipment is included, and whether installation is included in the price.
At Akım Yangın, we evaluate suitable cabinet fire suppression solutions for electrical panels and critical equipment together with site assessment, system selection, installation, and commissioning processes. A professional assessment based on your cabinet dimensions, intended use, and fire risk is the most appropriate starting point for determining which system is suitable for your application.
Don't wait for a small fire inside your electrical cabinet to turn into a major business loss. You can contact Akım Yangın to learn more about suitable electrical cabinet fire suppression solutions and request a project-specific quotation.
