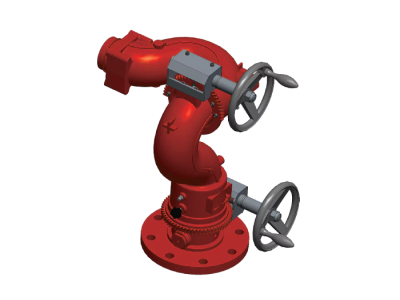

MH2
Product Variants
- SAP number EM2H2-3X4CPS
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 3″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-3X3SPS
- Connection Flange
- Connection type PN16
- Size 3″/DN80
- Size 2 3″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-4X4CPS
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 4″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-4X6CPX
- Connection Flange
- Connection type PN16
- Size 6″/DN150
- Size 2 4″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-4X6SPX
- Connection Flange
- Connection type PN16
- Size 6″/DN150
- Size 2 4″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-4X6SPS
- Connection Flange
- Connection type PN16
- Size 6″/DN150
- Size 2 4″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-4X6CPS
- Connection Flange
- Connection type PN16
- Size 6″/DN150
- Size 2 4″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-3X3CPS
- Connection Flange
- Connection type PN16
- Size 3″/DN80
- Size 2 3″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-4X4CPX
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 4″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-3X4SPS
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 3″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-3X4SPX
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 3″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-3X3CPX
- Connection Flange
- Connection type PN16
- Size 3″/DN80
- Size 2 3″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-3X3SPX
- Connection Flange
- Connection type PN16
- Size 3″/DN80
- Size 2 3″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
- SAP number EM2H2-4X4SPX
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 4″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-4X4SPS
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 4″ Body
- Finish Flame red RAL3000
- Main material Stainless steel 316 | Flange: Stainless steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 8000
- SAP number EM2H2-3X4CPX
- Connection Flange
- Connection type PN16
- Size 4″/DN100
- Size 2 3″ Body
- Finish Polished stainless steel
- Main material Stainless steel 316 | Flange: Carbon steel
- Style Manual – Handwheel
- Movement 2 Swivel – Vertical, Horizontal
- Maximum flowrate 4000
| SAP number | Connection | Connection type | Size | Size 2 | Finish | Main material | Style | Movement | Maximum flowrate |
|---|---|---|---|---|---|---|---|---|---|
| EM2H2-3X4CPS | Flange |
PN16 |
4″/DN100 |
3″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-3X3SPS | Flange |
PN16 |
3″/DN80 |
3″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-4X4CPS | Flange |
PN16 |
4″/DN100 |
4″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-4X6CPX | Flange |
PN16 |
6″/DN150 |
4″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-4X6SPX | Flange |
PN16 |
6″/DN150 |
4″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-4X6SPS | Flange |
PN16 |
6″/DN150 |
4″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-4X6CPS | Flange |
PN16 |
6″/DN150 |
4″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-3X3CPS | Flange |
PN16 |
3″/DN80 |
3″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-4X4CPX | Flange |
PN16 |
4″/DN100 |
4″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-3X4SPS | Flange |
PN16 |
4″/DN100 |
3″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-3X4SPX | Flange |
PN16 |
4″/DN100 |
3″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-3X3CPX | Flange |
PN16 |
3″/DN80 |
3″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-3X3SPX | Flange |
PN16 |
3″/DN80 |
3″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
| EM2H2-4X4SPX | Flange |
PN16 |
4″/DN100 |
4″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-4X4SPS | Flange |
PN16 |
4″/DN100 |
4″ Body |
Flame red RAL3000 |
Stainless steel 316 | Flange: Stainless steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
8000 |
| EM2H2-3X4CPX | Flange |
PN16 |
4″/DN100 |
3″ Body |
Polished stainless steel |
Stainless steel 316 | Flange: Carbon steel |
Manual – Handwheel |
2 Swivel – Vertical, Horizontal |
4000 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
