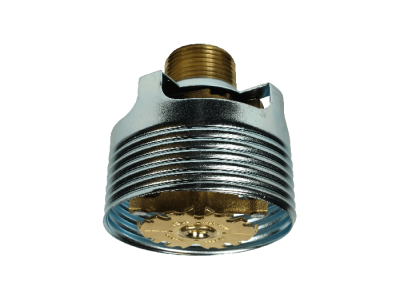

VK538
Product Variants
- SAP number 17115AC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 17115AE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 17115JNC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Pendent
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 17115JNE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Pendent
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17115AC | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 17115AE | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
96 |
| 17115JNC | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 17115JNE | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
