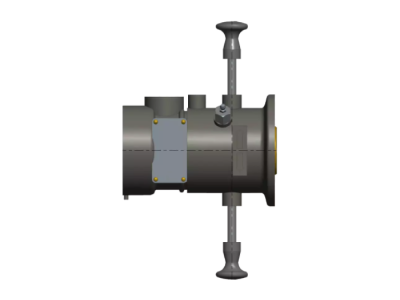

VNN
Product Variants
- SAP number VNN750NS
- Connection Threaded
- Connection type Female NH
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 2,838 @ 6.89 bar
- SAP number VNN500BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNN500NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNN750BS
- Connection Threaded
- Connection type Female BSP
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 2,838 @ 6.89 bar
- SAP number VNN250BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNN350NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNN350NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNN250NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNN1000BS
- Connection Threaded
- Connection type Female BSP
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 3,785 @ 6.89 bar
- SAP number VNN1000NS
- Connection Threaded
- Connection type Female NH
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 3,785 @ 6.89 bar
- SAP number VNN250NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNN500NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNN500BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNN350BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNN350BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNN250BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
| SAP number | Connection | Connection type | Size | Size 2 | Finish | Main material | Style | Maximum working pressure | Nominal flowrate |
|---|---|---|---|---|---|---|---|---|---|
| VNN750NS | Threaded |
Female NH |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Foam water adjustable monitor nozzle |
17,2 |
2,838 @ 6.89 bar |
| VNN500BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNN500NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNN750BS | Threaded |
Female BSP |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Foam water adjustable monitor nozzle |
17,2 |
2,838 @ 6.89 bar |
| VNN250BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNN350NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNN350NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNN250NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNN1000BS | Threaded |
Female BSP |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Foam water adjustable monitor nozzle |
17,2 |
3,785 @ 6.89 bar |
| VNN1000NS | Threaded |
Female NH |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Foam water adjustable monitor nozzle |
17,2 |
3,785 @ 6.89 bar |
| VNN250NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNN500NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNN500BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNN350BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNN350BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNN250BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
